Wheels: Hardness & Sizes

Grease-92-95-97A-63mmDance-a-300x200 Wheels: Hardness & Sizes

The Roll-Line Urethane wheels, are incredible wheels which utilize Large, very Strong, & Lightweight Hub. This hub provides a thinner Tire Tread or wheel compound, similar in concept to a Low Rider tire on your car, and provides great GRIP and incredible ROLL, because there is very little or no Tread Compression, of the Urethane material as it heats up from friction with the Skating surface.

This combination of a very good Gripping wheel Compound, and a large Hub that provides the ROLL, and gives the Roll-Line Urethane Dance, FreeStyle, Hockey, Speed, or General Purpose wheels with wonderful characteristics of very Good Grip and Great Roll and a bonus of being Lightweight!!!

The Wheels have 2 numbers on them that count.

1. The Wheel Hardness is measured on the Shore scale:

Either on the “D” scale or the “A” scale

“D” scales are for hardnesses of Plastic Compound Wheels

“A” scales are for hardnesses of Urethane Compound Wheels

The lower the Number the – Softer the Wheel Provides More Grip with a little Less Roll

The higher the Number the – Harder the Wheel Provides a little Less Grip with More Roll

2. The Wheel Diameter is measured in millimeters

55mm and 57mm are used for FreeStyle skating, primarily. (the 55mm are based on a lowering of the center of gravity)

63mm are used for Dance Wheels, Derby and General Skating

63mm are used for the LARGE Figure Circles

61mm and 62mm are used for Hockey and Speed (are based on just a small lowering of the center of gravity)

60mm are used for LOOPS

The Hardnesses between the US and Europe do not exactly line up

US 101A would be most like a Grease 95A

US 103A would be most like a Grease 97A

Roll-Line most often provides 4 or more Hardnesses in each Style of Wheels

Most of the Roll-Line wheels, including the Grease wheels, offset the mounting of the bearings to the inside of the wheels, just a little more than some other wheels. This does provide a wider stance, which could be considered to help with stability like the old Pontiac Wide Tracking. Roll-Line Wheels have a little more space between the Bearings, when seated in a Wheel. The wider spacing is the same as the wheels of yesteryear. This allows for a little more stability within the bearings and not quite as much rotational torque, thus providing more roll than with the bearings spaced closer together.

Roll-Line believes in limiting the width of Wheel tread that contacts the Skating Surface, because too much wheel will cut down on the ROLL of the wheel. The use of a large light weight hub helps greatly with also increasing the Roll of the wheel. A large hub with a thinner tread minimizes the tire (or tread) compression that happens with most all Urethane wheels as they age a bit and works like a low rider tire on a car. Some Urethane Wheels have much more thickness (or tread) with a very small Hub, if any and after a time loose some of their Roll because of the heating from friction with the Skating surface and compression of the Urethane. Roll-Line uses a grippy Urethane compound in combination with the large hub, which produces a wheel with an unusual combination of Great Grip and Super Roll.

Other Wheel Notes:

Some of the low and mid level (and even some supposed high level) wheels come NEW with grooves in them, because as a part of the manufacturing process, they need to trim or clean up the wheel surface, so they lathe them, leaving the grooves. It also looks cool.

Grooves are not really such a good thing, as you are only skating on the tops of the grooves, or about 40% of the wheel surface. You actually get much better grip when you have more wheel surface contacting the skating surface. When the wheels are Bald, they are really performing the way they are supposed to.

As some wheel (especially the less expensive wheels) compounds age , they continue over time to cure or get HARDER. This harder result produces a wheel, which feels more slippery even though it has a low Durometer. Grooving a hardened wheel, means less wheel surface area contacting the skating surface and would be EVEN MORE SLIPPERY.



What Makes a GREAT Roller Skate Bearing?

CarbonJ-Bearing-300x256 Wheels: Hardness & Sizes

The Carbon J Bearings from Roll-Line are GREAT Bearings

Carbon J Bearings are Custom for Roll-Line and are ABEC 5 bearings.

The Axle Center Bore is 7mm.

They have 7 Ultra Precision Balls, Carbon Impregnated Ball Crown Cage Ring with NO Shields

The Roll-Line Carbon J Bearings are specifically made for very High Level Competitive Roller Skating. The Carbon J Bearings are Free Rolling with minimal Radial Play which promotes and very evenly distributes the load across the 7 balls for optimal Roll and a good amount of Axial Play or Thrust, which is the side movement of the inner race in relation to the outer race. This movement is very important because when Skaters push, we always put side load on the skate to get power in the push or stroke. If the Bearing does not allow for this, it will bind and LOOSE operating speed or ROLL. These provisions in the Race Curvature and Contact Angle allow the Roll-Line Carbon J Bearings to ROLL very freely

The Roll-Line Carbon J Bearings DO NOT have a Shield (to get dinged and bind the Bearing) and is ONLY available for Skates with 7mm Axles. The Roll-Line Carbon J Bearings are skated on by most of the World level Skaters and Champions in Artistic and Quad Ball Hockey.

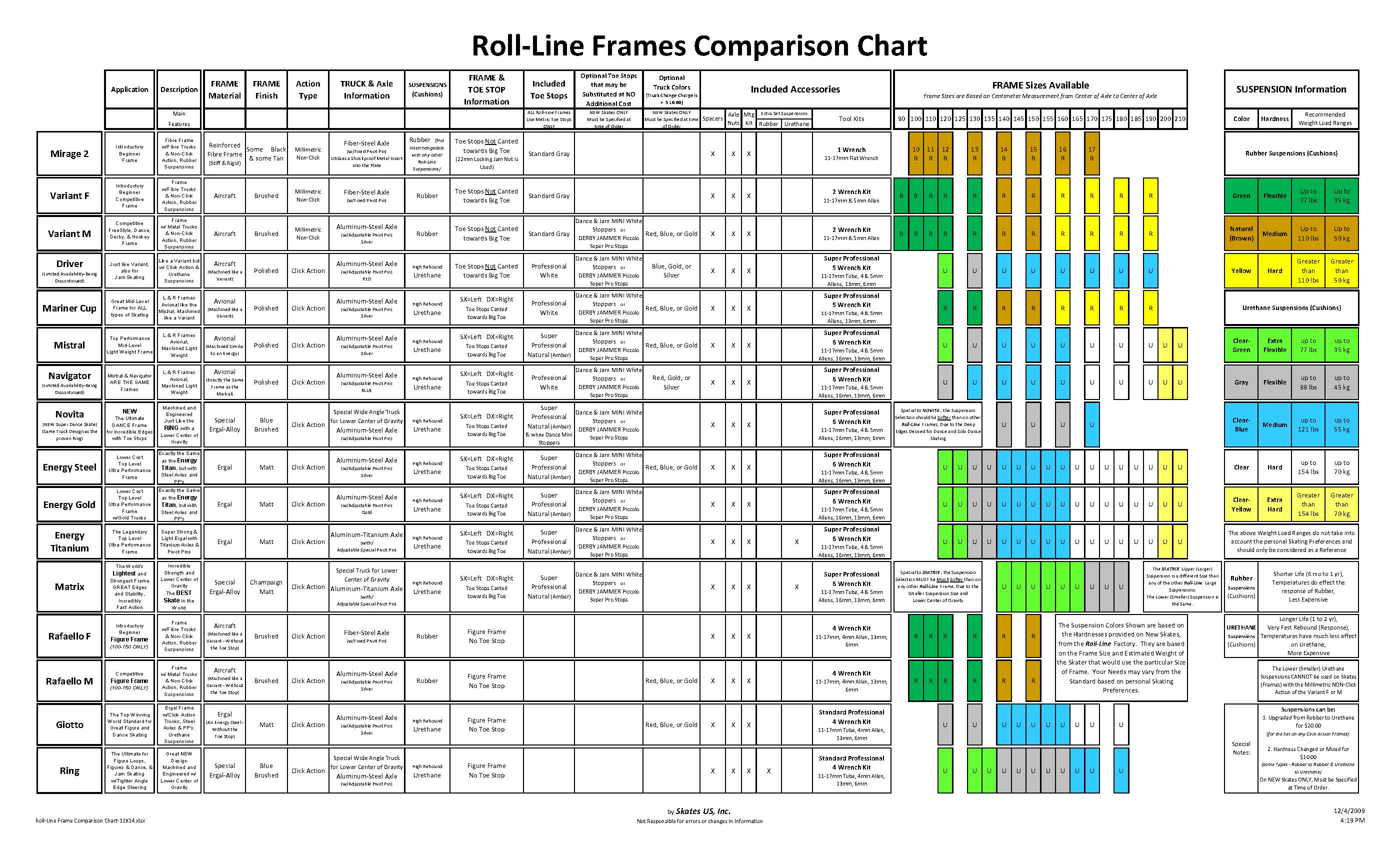

Roller Boot to Frame Sizing Chart

The boot to frame sizing is based on what most FreeStyle Skaters would use. This is a longer skate Frame, or longer wheel base with the front axle just slightly in front of the ball of the foot, so the skaters would have a larger landing platform and not go on the toe stop as easy when landing jumps. This sizing is also used for most Quad Speed Skaters, Jam Skaters, Roller Derby, and some Recreational Skaters.

For Dance Skating (which includes Solo Dance, Original Dance, and Free Dance) and Figure Skating the desire would be to have the front axle directly under the ball of the foot. This may also prove to be the best way for Roller Derby Girls to size their Frames, as Maneuverability is very important in this sport. This may mean that on some boots the Frame size would be smaller that shown on the chart.

For Figure Loop Skating most of the top level coaches encourage their students to have a slightly shorter wheel base, if using two (2) pairs of skates for figures. This would usually mean one half (1/2) to one (1) whole size shorter than that used for the large circles. The shorter wheel base is said to allow better control in the loop portion of the circle.

For Quad Roller Ball Hockey the normal is to use a Frame that is about two (2) whole sizes shorter than the chart will show. This is so they can get to their Toe Stops faster for quick starts and stops.

The Chart Itself

The Chart is a compilation of many other charts from many sources, including some of the manufacturers mentioned, and this Chart has been used successfully for several years.The Information is not guaranteed to be correct, and as you can see personal preference has a lot to do with the selection of a Frame size.
